VK1021 STANDARD RESPONSE PENDENT SPRINKLER K5.6 (80.6)

This document covers the following product, hereafter referred to as “sprinkler”: VK1021: Standard Response, Standard Coverage, Pendent, K5.6 (80.6) Sprinkler.

The sprinkler is intended to be used in automatic fire sprinkler systems as allowed by applicable approval authorities. The sprinkler must be used in accordance with:

1. the sprinkler’s Listings, Approvals, and associated design requirements.
2. the recognized design and installations standards issued, for example NFPA, FM, EN, VdS, or LPCB.
3. the latest revisions of all applicable manufacturer’s documentation.

Governmental codes, ordinances, and standards may apply and may differ from one another.

• BRAND : VIKING
• MANUFACTURER : VIKING CORPORATION
• COUNTRY : USA.
• MODEL : VK1021
• TYPE : PENDENT
• RESPONSE : STANDARD RESPONSE
• ACCESSORIES : ESCUTCHEON PLATED
• APPROVED : UL/FM

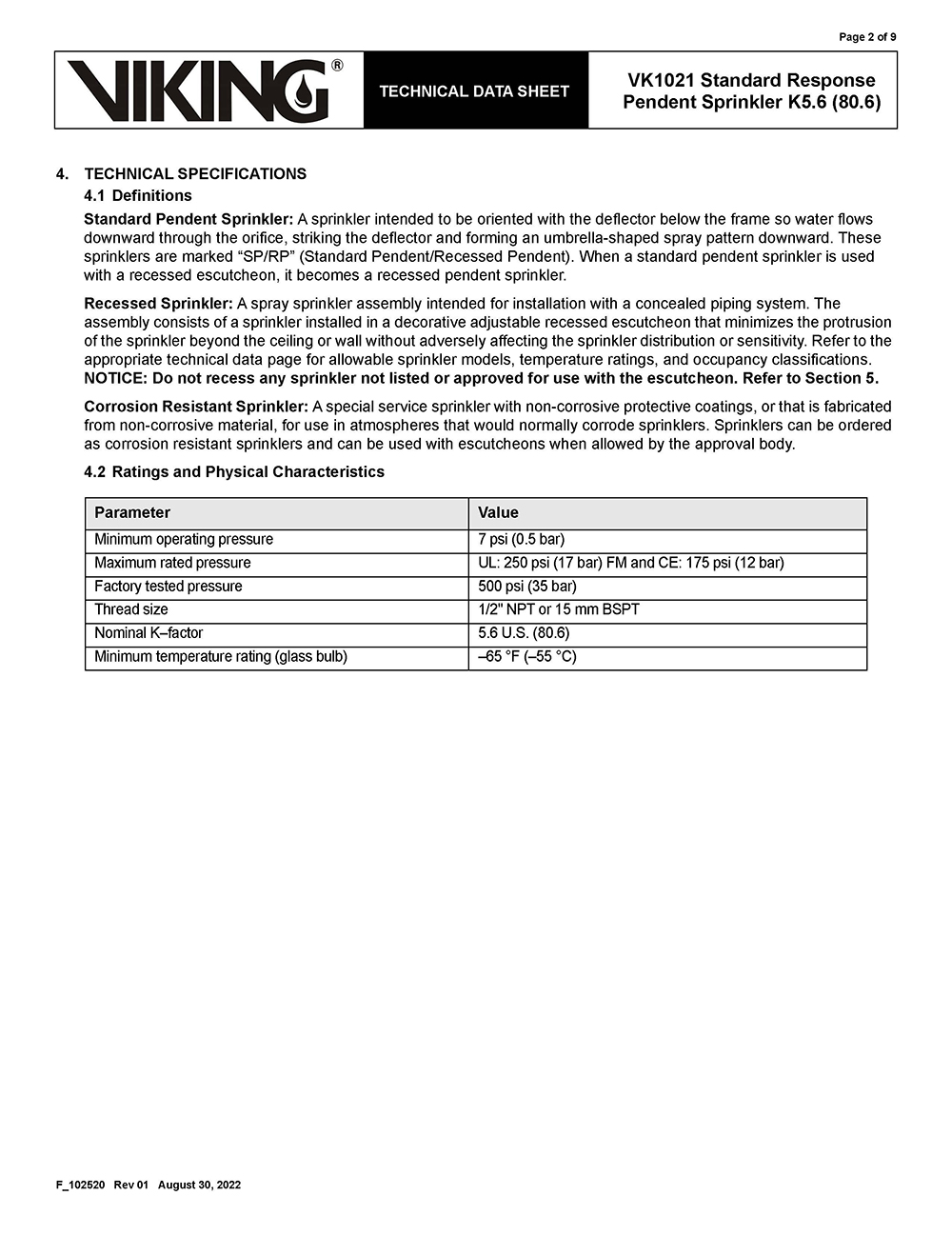

• K-FACTOR : 5.6 GPM/PSI1/2
• CONNECTION : SCREWED ENDS
• TEMP. : 155°F
• PRESSURE : 250 PSI. WKP. (UL LISTED)
• 175 PSI. WKP. (FM APPROVED)

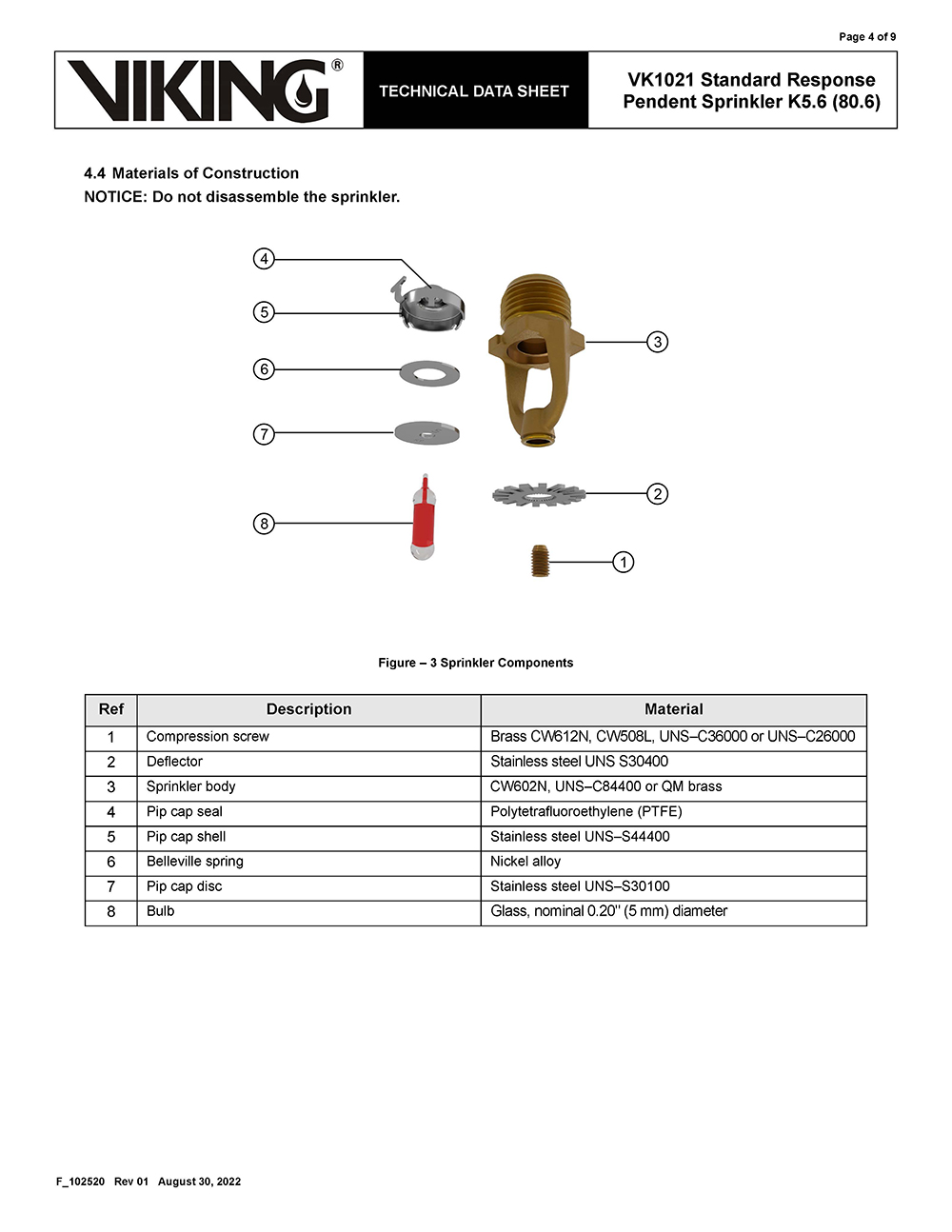

• FRAME : BRASS
• BULB : GLASS 5 MM.
• BELLEVILLE SPRING : NICKEL ALLOY
• DEFLECTOR : STAINLESS STEEL
