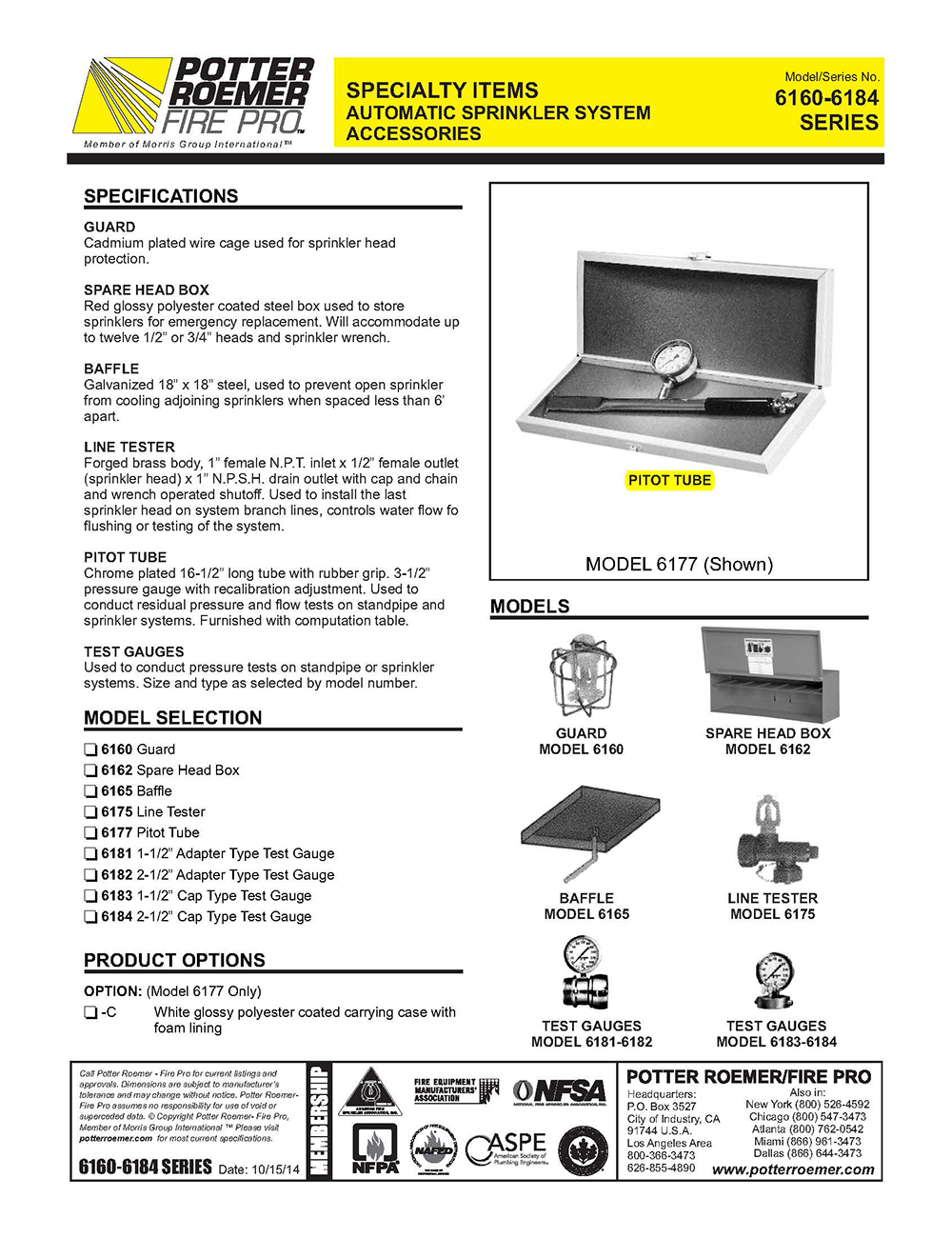

SPECIALTY ITEMS AUTOMATIC SPRINKLER SYSTEM ACCESSORIES
6177 Pitot Gauge
Potter Roemer
Model/Series No. 6160-6184 SERIES
GUARD
Cadmium plated wire cage used for sprinkler head protection.
SPARE HEAD BOX
Red glossy polyester coated steel box used to store sprinklers for emergency replacement. Will accommodate up to twelve 1/2” or 3/4” heads and sprinkler wrench.
BAFFLE
Galvanized 18” x 18” steel, used to prevent open sprinkler from cooling adjoining sprinklers when spaced less than 6’ apart.
LINE TESTER
Forged brass body, 1” female N.P.T. inlet x 1/2” female outlet (sprinkler head) x 1” N.P.S.H. drain outlet with cap and chain
and wrench operated shutoff. Used to install the last sprinkler head on system branch lines, controls water flow fo flushing or testing of the system.

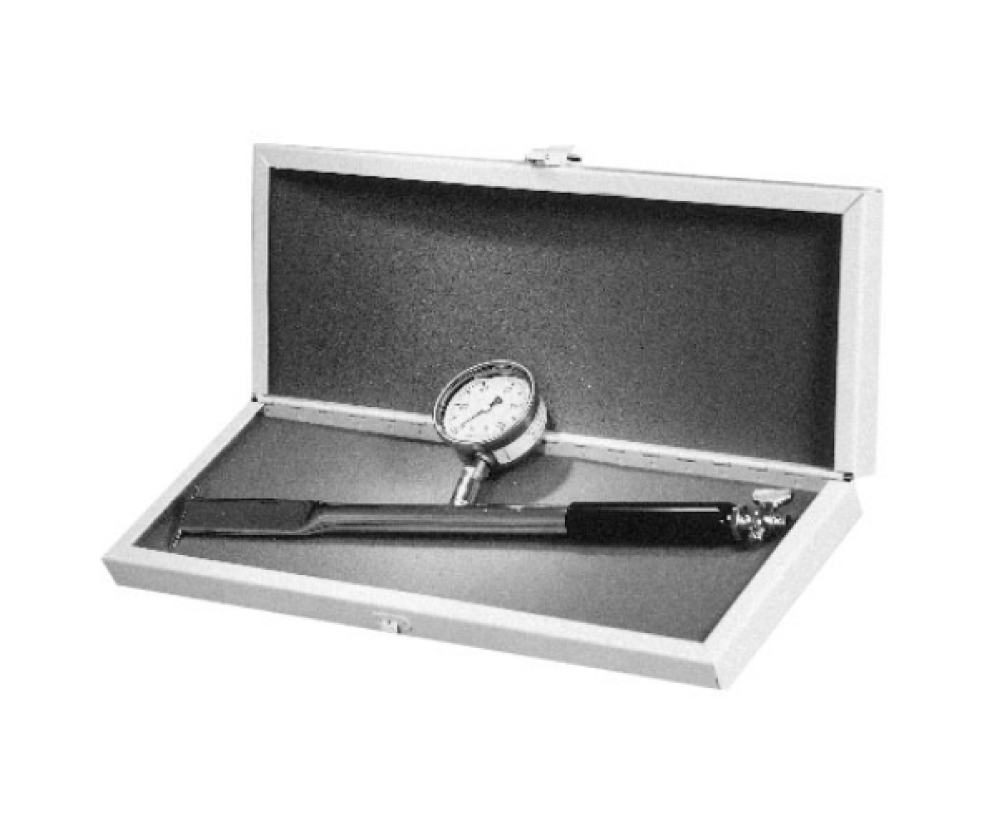

PITOT TUBE
Chrome plated 16-1/2” long tube with rubber grip. 3-1/2” pressure gauge with recalibration adjustment. Used to conduct residual pressure and flow tests on standpipe and sprinkler systems. Furnished with computation table.
TEST GAUGES
Used to conduct pressure tests on standpipe or sprinkler systems. Size and type as selected by model number.
GUARD
Cadmium plated wire cage used for sprinkler head protection.
SPARE HEAD BOX
Red glossy polyester coated steel box used to store sprinklers for emergency replacement. Will accommodate up to twelve 1/2” or 3/4” heads and sprinkler wrench.
BAFFLE
Galvanized 18” x 18” steel, used to prevent open sprinkler from cooling adjoining sprinklers when spaced less than 6’ apart.
LINE TESTER
Forged brass body, 1” female N.P.T. inlet x 1/2” female outlet (sprinkler head) x 1” N.P.S.H. drain outlet with cap and chain
and wrench operated shutoff. Used to install the last sprinkler head on system branch lines, controls water flow fo flushing or testing of the system.
PITOT TUBE
Chrome plated 16-1/2” long tube with rubber grip. 3-1/2” pressure gauge with recalibration adjustment. Used to conduct residual pressure and flow tests on standpipe and sprinkler systems. Furnished with computation table.
TEST GAUGES
Used to conduct pressure tests on standpipe or sprinkler systems. Size and type as selected by model number.
SPECIAL FEATURES
• GUARD MODEL 6160
• SPARE HEAD BOX MODEL 6162
• BAFFLE MODEL 6165
• LINE TESTER MODEL 6175
• EST GAUGES MODEL 6181-6182
• TEST GAUGES MODEL 6183-6184
• SPARE HEAD BOX MODEL 6162
• BAFFLE MODEL 6165
• LINE TESTER MODEL 6175
• EST GAUGES MODEL 6181-6182
• TEST GAUGES MODEL 6183-6184
