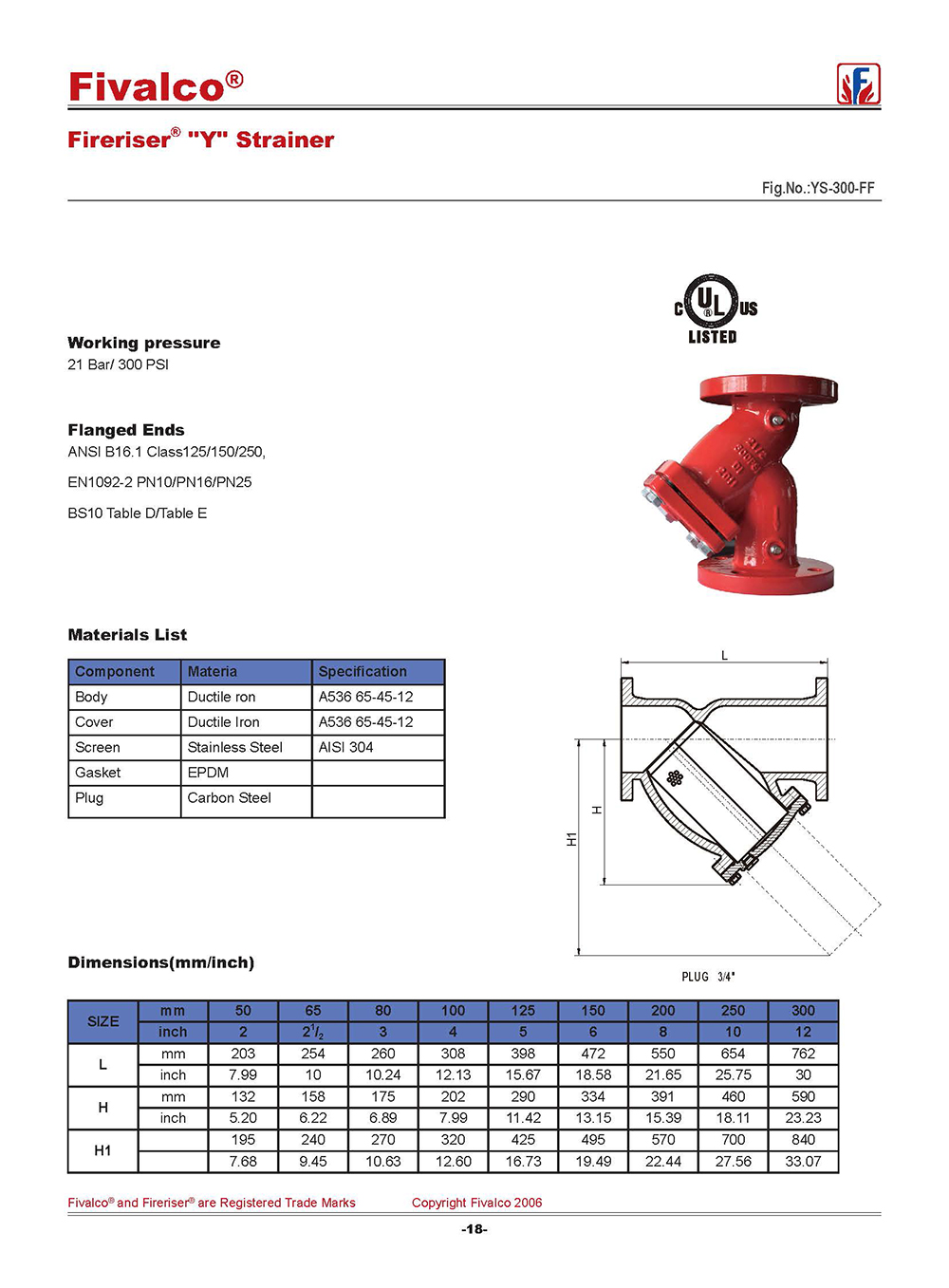

FIVALCO Y-STRAINER FLANGED END
YS-300-FF
Fivalgo
Working Pressure:
21 BARS/300PSI
Temperature: from -10°c to 120°c
Fusion bonded epoxy coated RAL3002
Flanged Ends
ANSI B16.1 Class125/150/250,
ได้รับมาตรฐาน UL LISTED
21 BARS/300PSI
Temperature: from -10°c to 120°c
Fusion bonded epoxy coated RAL3002
Flanged Ends
ANSI B16.1 Class125/150/250,
ได้รับมาตรฐาน UL LISTED
SPECIAL FEATURES
• Body : Ductile Iron
• Cover : Ductile Iron
• Screen : Stainless Steel
• Gasket : EPDM
• Plug : Carbon Steel
• Cover : Ductile Iron
• Screen : Stainless Steel
• Gasket : EPDM
• Plug : Carbon Steel
| SIZE IN/MM |
MEASURED LOSS AT15 FPS (4.6M/S) |
|---|---|
| 2″/50 | 7.22 psi |
| 2.5″/65 | 5.89 psi |
| 3″/80 | 8.24 psi |
| 4″/100 | 5.88 psi |
| 5″/125 | 7.63 psi |
| 6″/150 | 4.82 psi |
| 8″/200 | 5.83 psi |
| 10″/250 | 7.25 psi |
| 12″/300 | 5.73 psi |
