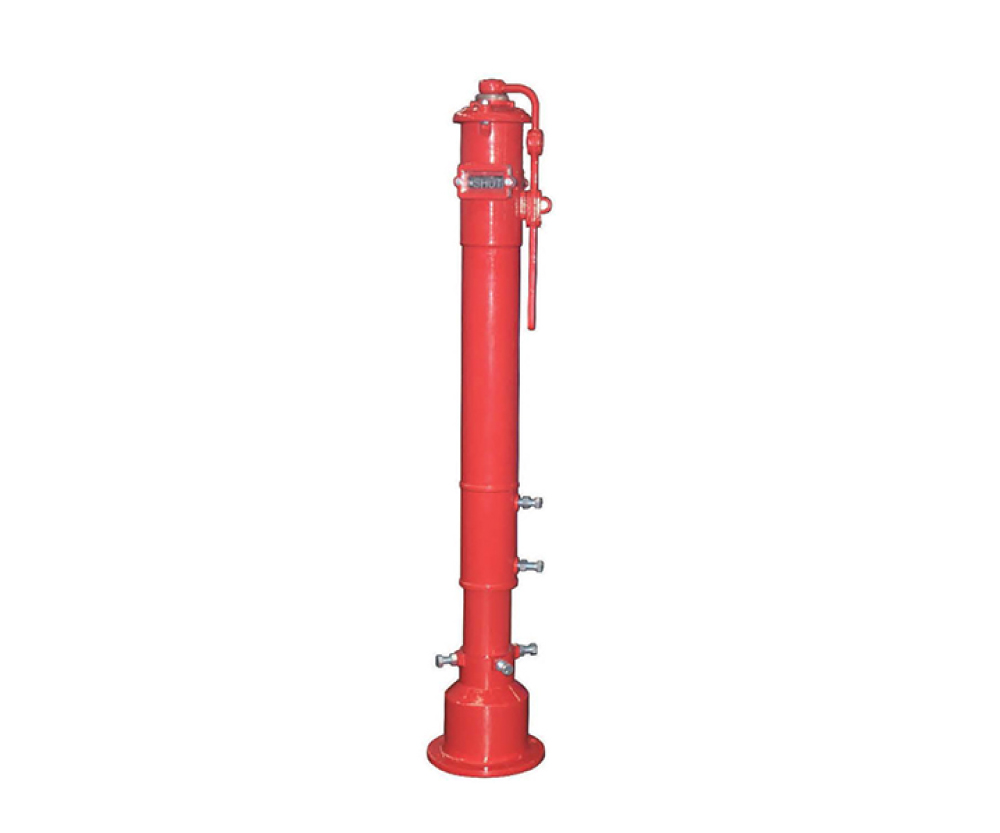

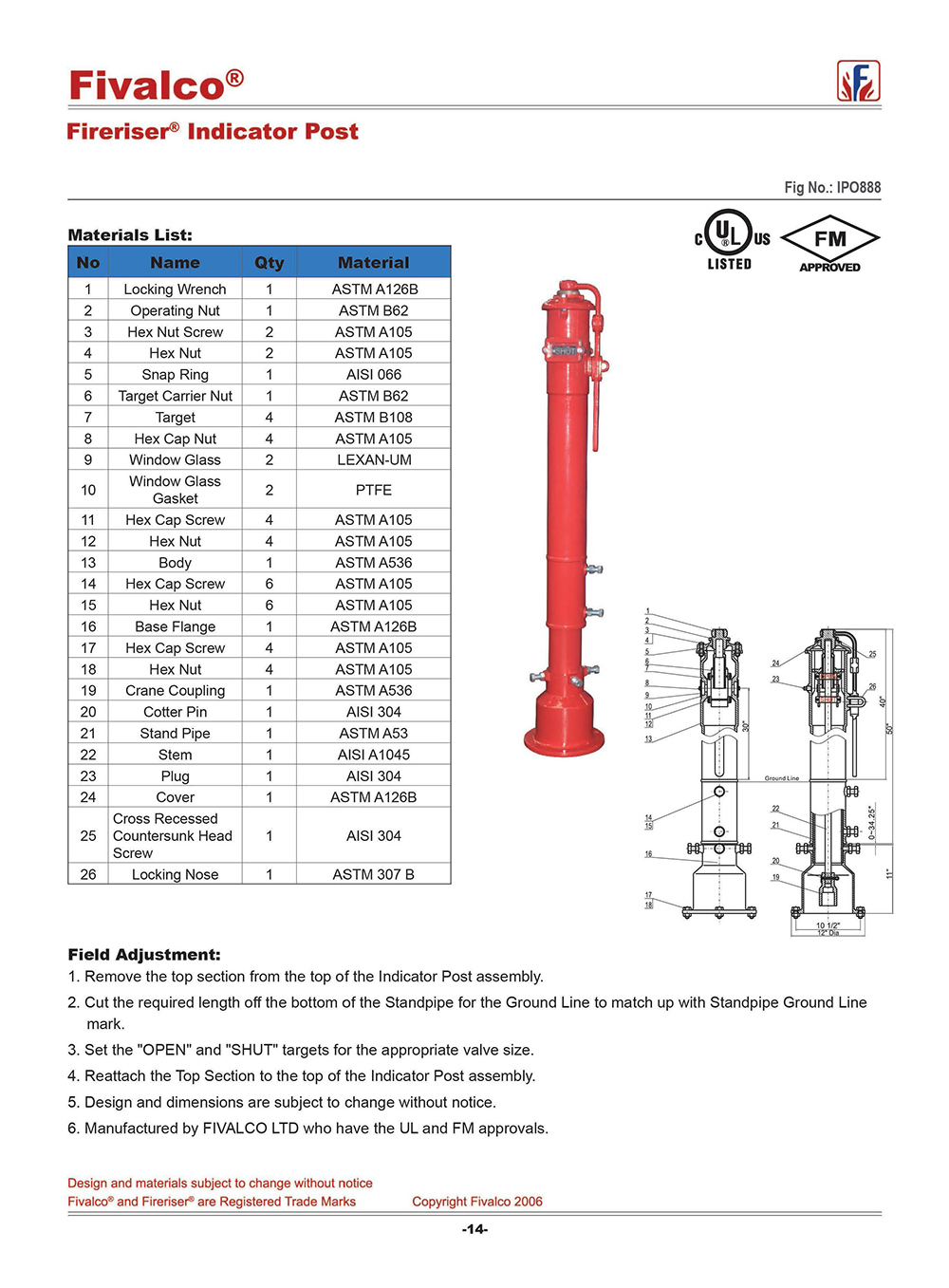

FIVALCO INDICATOR POST
IPO888
Fivalgo
ได้รับมาตรฐาน
UL LISTED
FM APPROVED
UL LISTED
FM APPROVED

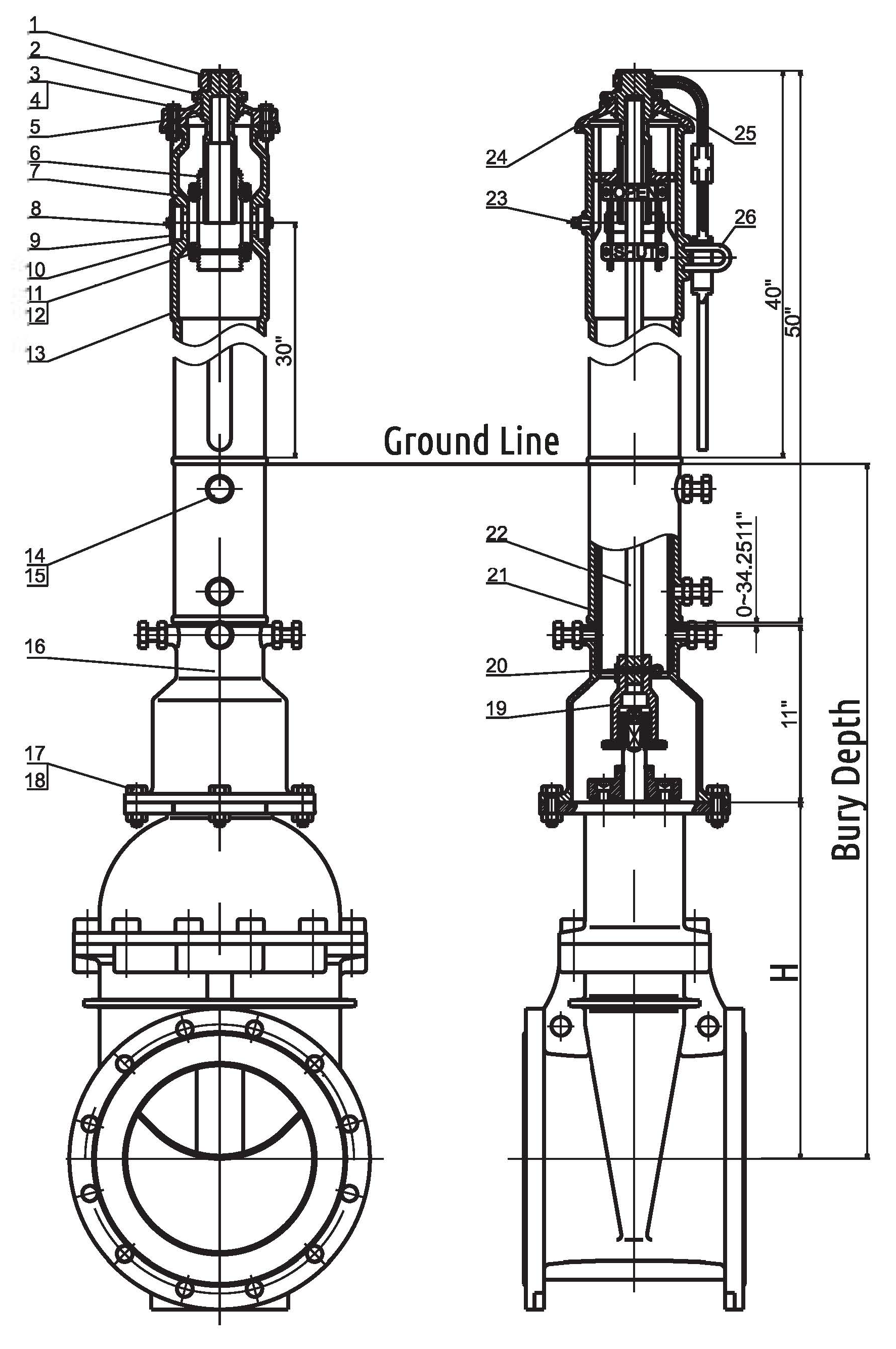

BURY DEPTH
| VALVE SIZE | MIN. BURYDEPTH (INCH) | MAX. BURYDEPTH (INCH) | H | |
|---|---|---|---|---|
| mm | inch | |||
| 4″ | 31.14″ | 65.39″ | 251 | 9.98″ |
| 6″ | 35.12″ | 69.37″ | 352 | 13.86″ |
| 8″ | 38.58″ | 72.83″ | 440 | 17.32″ |
| 10″ | 42.32″ | 76.57″ | 535 | 21.06″ |
| 12″ | 42.51″ | 79.76″ | 616 | 24.25″ |
SPECIAL FEATURES
• Remove the top section from the top of the Indicator Post assembly.
• Cut the required length off the bottom of the Standpipe for the Ground Line to match up with Standpipe Ground Line mark.
• Set the "OPEN" and "SHUT" targets for the appropriate valve size.
• Reattach the Top Section to the top of the Indicator Post assembly.
• Design and dimensions are subject to change without notice.
• Manufactured by FIVALCO LTD who have the ULand FM approvals.
• Cut the required length off the bottom of the Standpipe for the Ground Line to match up with Standpipe Ground Line mark.
• Set the "OPEN" and "SHUT" targets for the appropriate valve size.
• Reattach the Top Section to the top of the Indicator Post assembly.
• Design and dimensions are subject to change without notice.
• Manufactured by FIVALCO LTD who have the ULand FM approvals.
