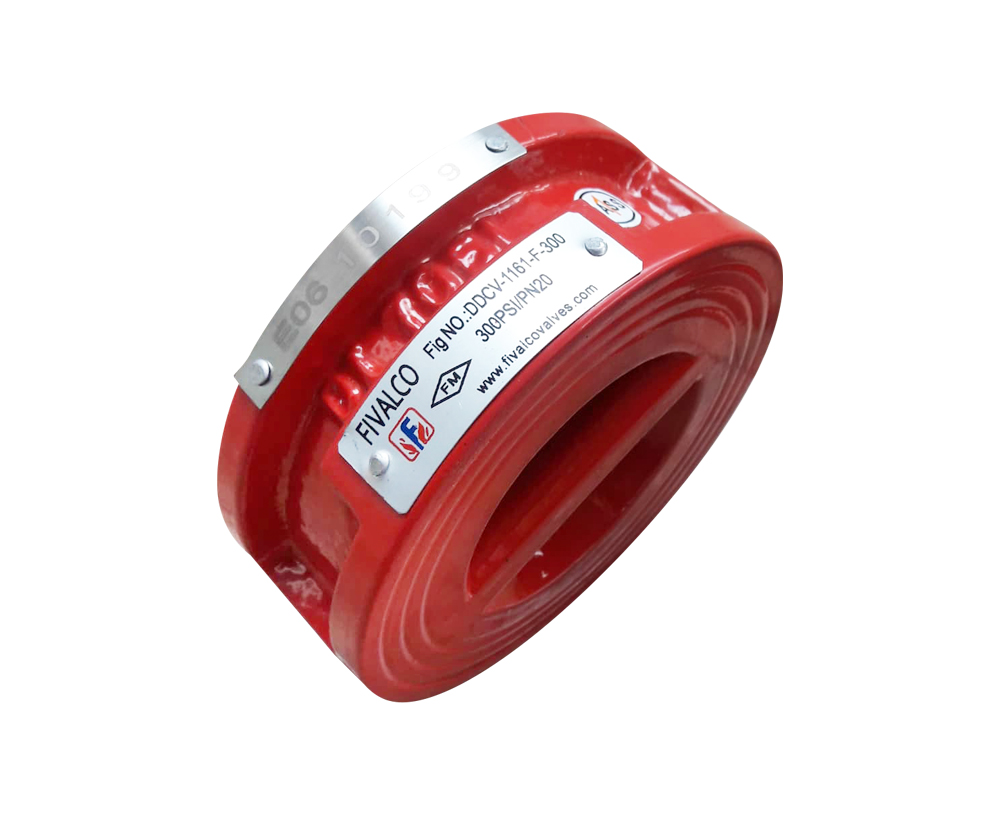

FIVALCO DOUBLE DICS CHECK VALVE WAFER TYPE
DDCV-1161-F-300
Fivalgo

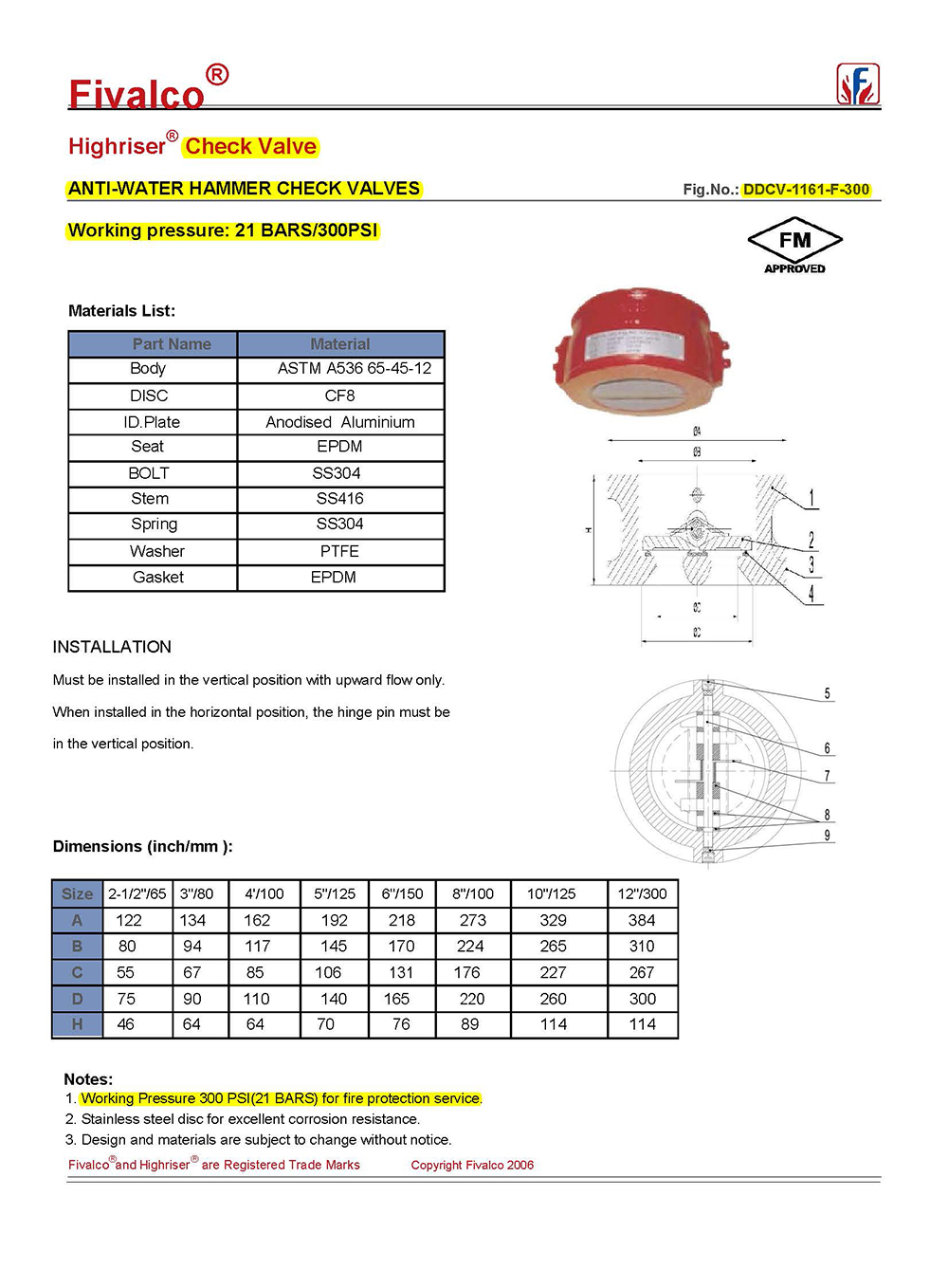

FIVALCO DOUBLE DICS CHECK VALVE WAFER TYPE MODEL DDCV-1161-F-300
FM Approved Standard.
Flange to ANSI B16.1 Class 125.
Stainless steel disc and spring for excellent corrosion resistance.
FM Approved Standard.
Flange to ANSI B16.1 Class 125.
Stainless steel disc and spring for excellent corrosion resistance.
Working pressure: 21 BARS/300PSI
INSTALLATION
Must be installed in the vertical position with upward flow only.
When installed in the horizontal position, the hinge pin must be in the vertical position.
SPECIAL FEATURES
• Body : ASTM A536 65-45-12
• DISC : CF8
• ID.Plate : Anodised Aluminium
• Seat : EPDM
• BOLT : SS304
• Stem : SS416
• Spring : SS304
• Washer : PTFE
• Gasket : EPDM
• DISC : CF8
• ID.Plate : Anodised Aluminium
• Seat : EPDM
• BOLT : SS304
• Stem : SS416
• Spring : SS304
• Washer : PTFE
• Gasket : EPDM
