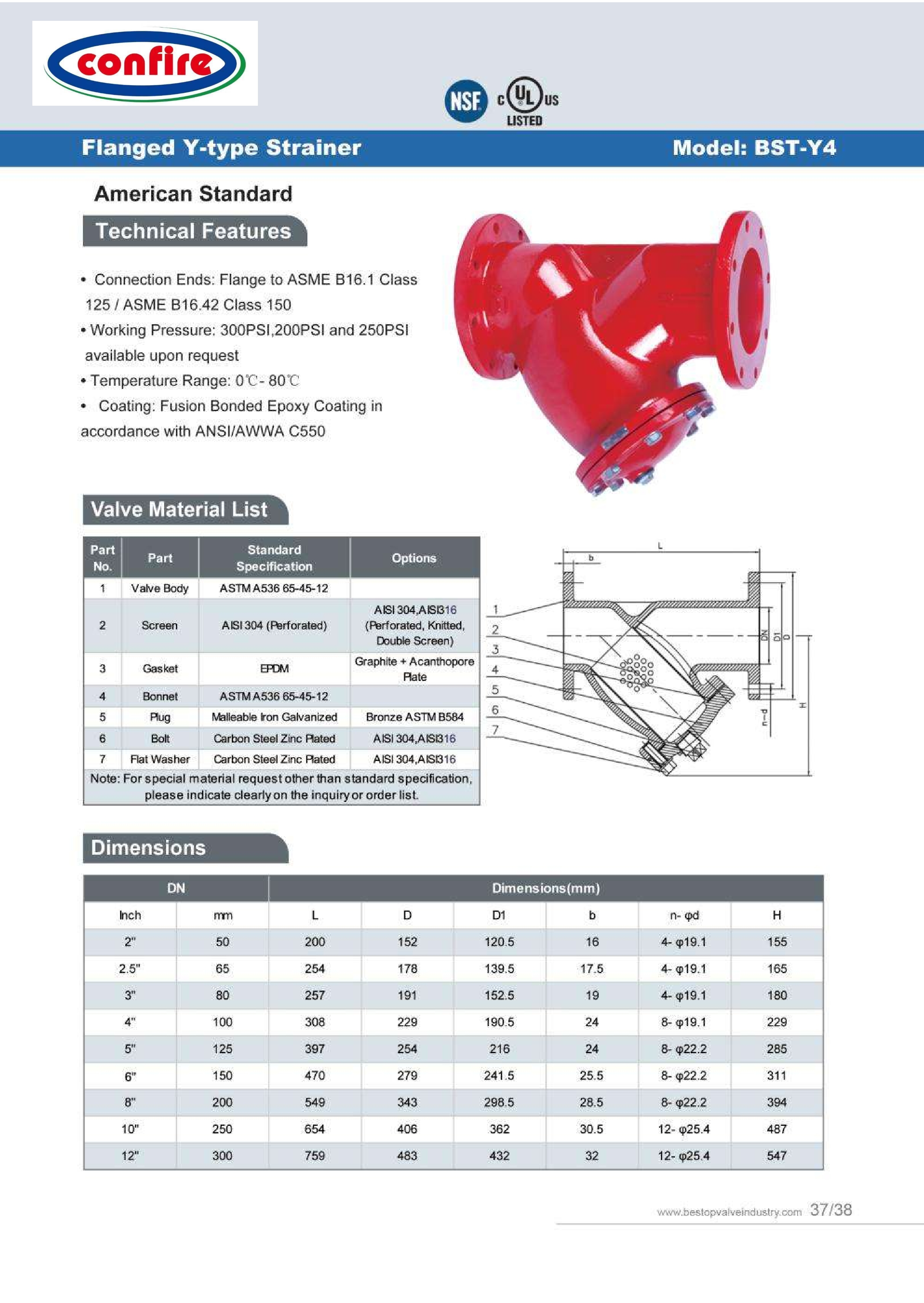

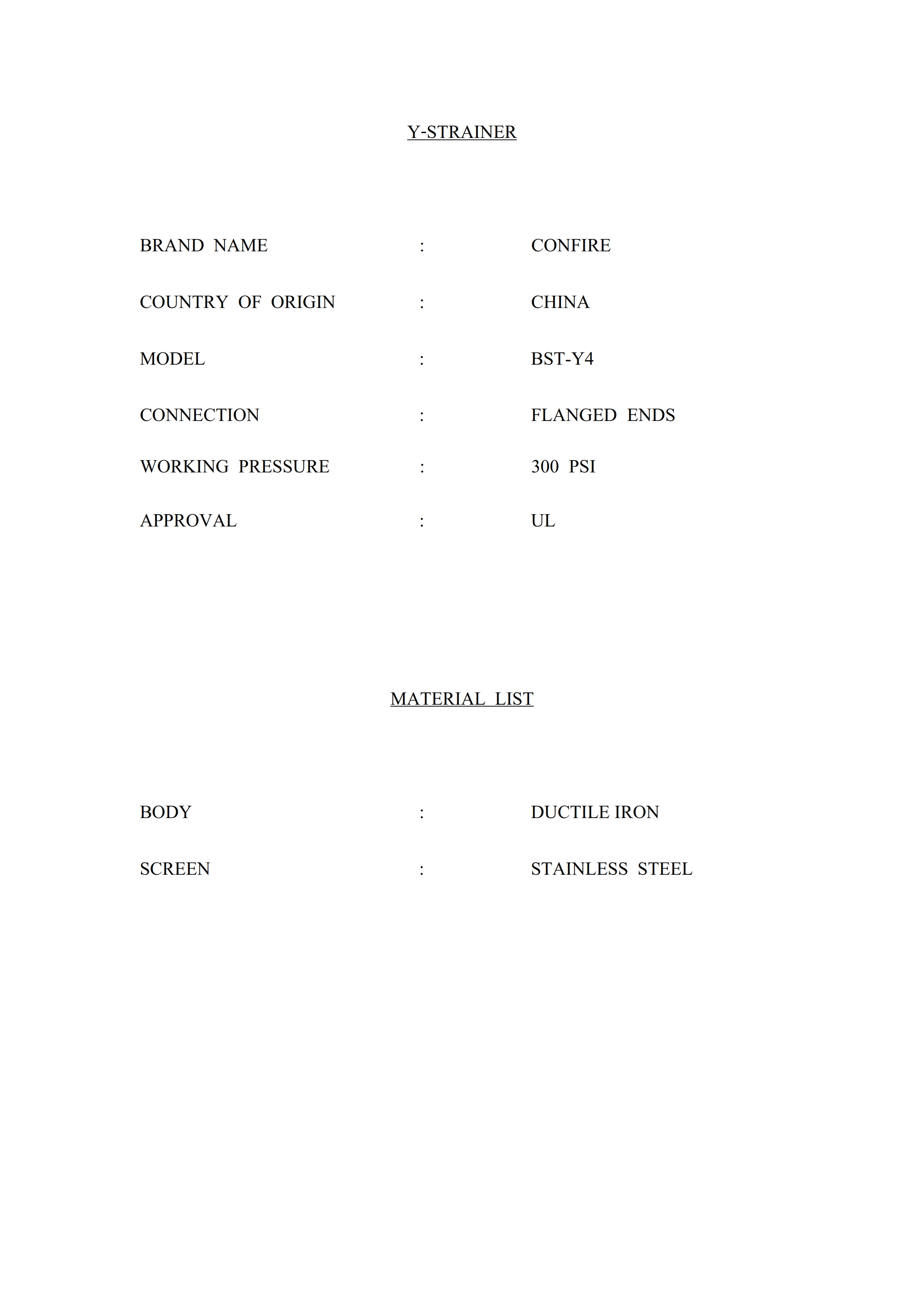

Y - Strainer Valve
BST-Y4
Confire
Confire Y-Strainer Flanged Ends 300PSI
Fig No.: BST-Y4
FEATURES & SPECIFICATIONS
Working Pressure: 21 BARS/300PSI
Temperature: from 0°c to 80°c
Fusion bonded epoxy coated ANSI/AWWA C550
Flanged Ends:ANSI B16.1 Class125/ANSI B16.5 Class150
UL Listed.
Fig No.: BST-Y4
FEATURES & SPECIFICATIONS
Working Pressure: 21 BARS/300PSI
Temperature: from 0°c to 80°c
Fusion bonded epoxy coated ANSI/AWWA C550
Flanged Ends:ANSI B16.1 Class125/ANSI B16.5 Class150
UL Listed.
SPECIAL FEATURES
Material Specification
| Name | Material |
|---|---|
| Body | Ductile Iron |
| Cover | Ductile Iron |
| Screen | Stainless Steel |
| Gasket | EPDM |
| Plug | Galvanized |
