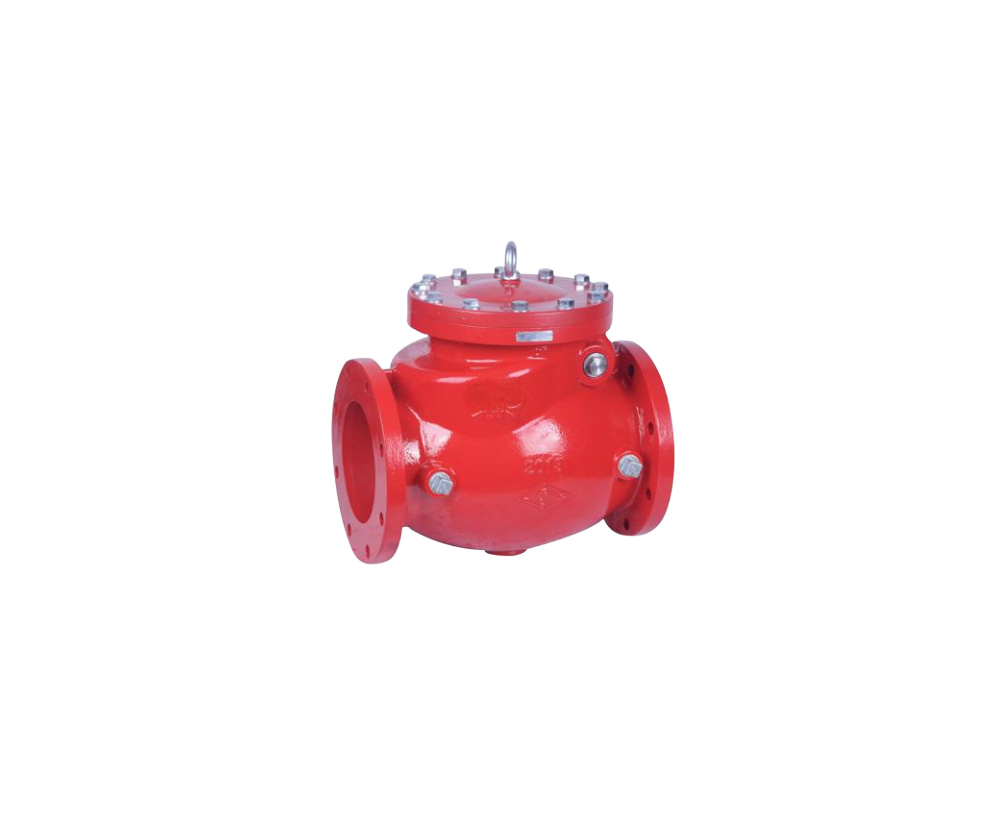

Flanged Swing Check Valve
MH-XQH-300
Confire

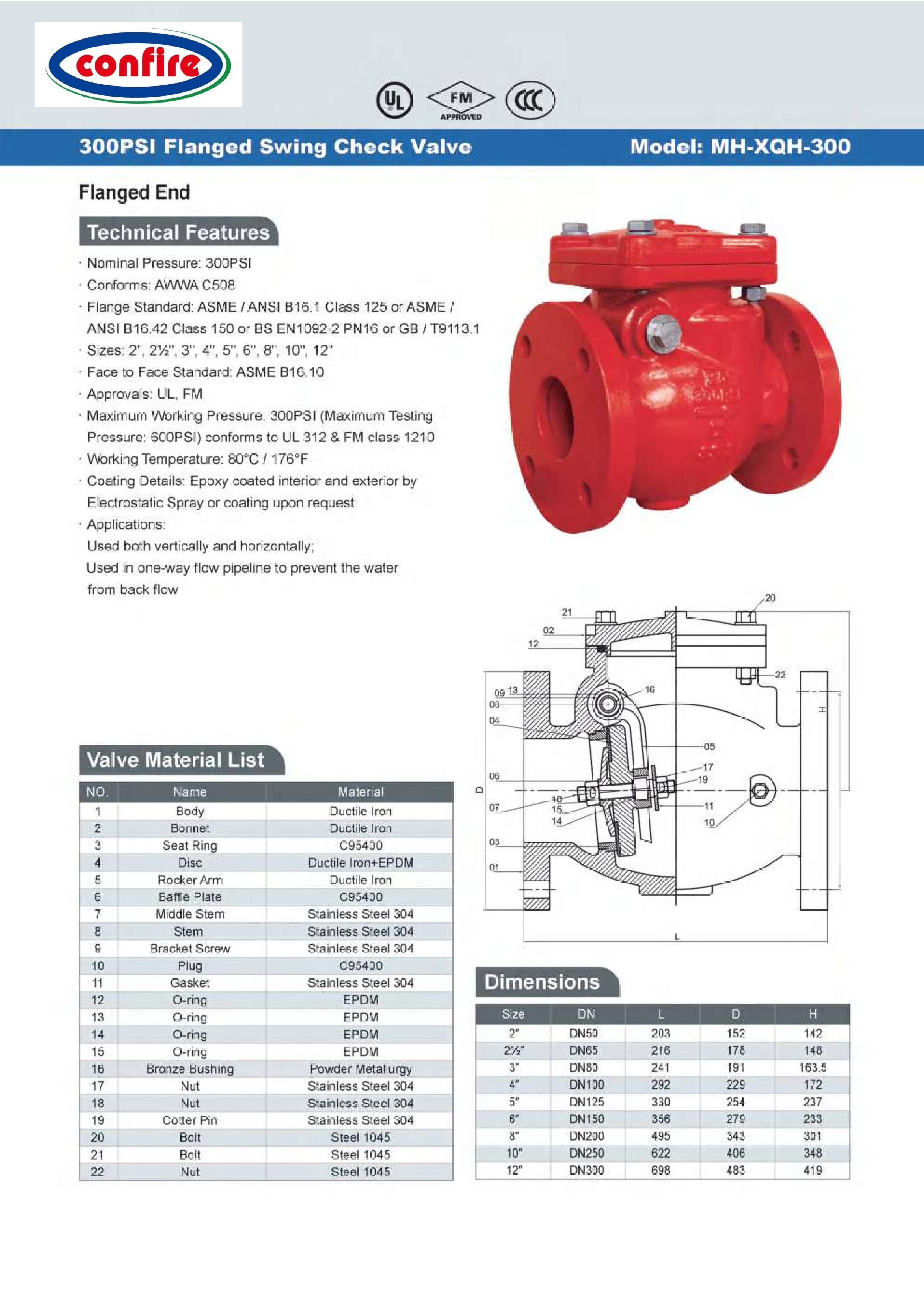

Confire Swing Check Valve Flanged Ends 300 PSI
Model : MH-XQH-300
FEATURES & SPECIFICATIONS
Valve Standard : Conforms to AWWA C508
Working Pressure: 21 BARS / 300 PSI (Maximun testing pressure : 600 PSI)
Temperature: from 0°C to 80°C
Flanged Ends: ANSI B16.1 Class 125/ANSI B16.5 Class 150/ EN1092-2 PN16
Used both vertically and horizontally
FM Approved, UL Listed.
Model : MH-XQH-300
FEATURES & SPECIFICATIONS
Valve Standard : Conforms to AWWA C508
Working Pressure: 21 BARS / 300 PSI (Maximun testing pressure : 600 PSI)
Temperature: from 0°C to 80°C
Flanged Ends: ANSI B16.1 Class 125/ANSI B16.5 Class 150/ EN1092-2 PN16
Used both vertically and horizontally
FM Approved, UL Listed.
SPECIAL FEATURES

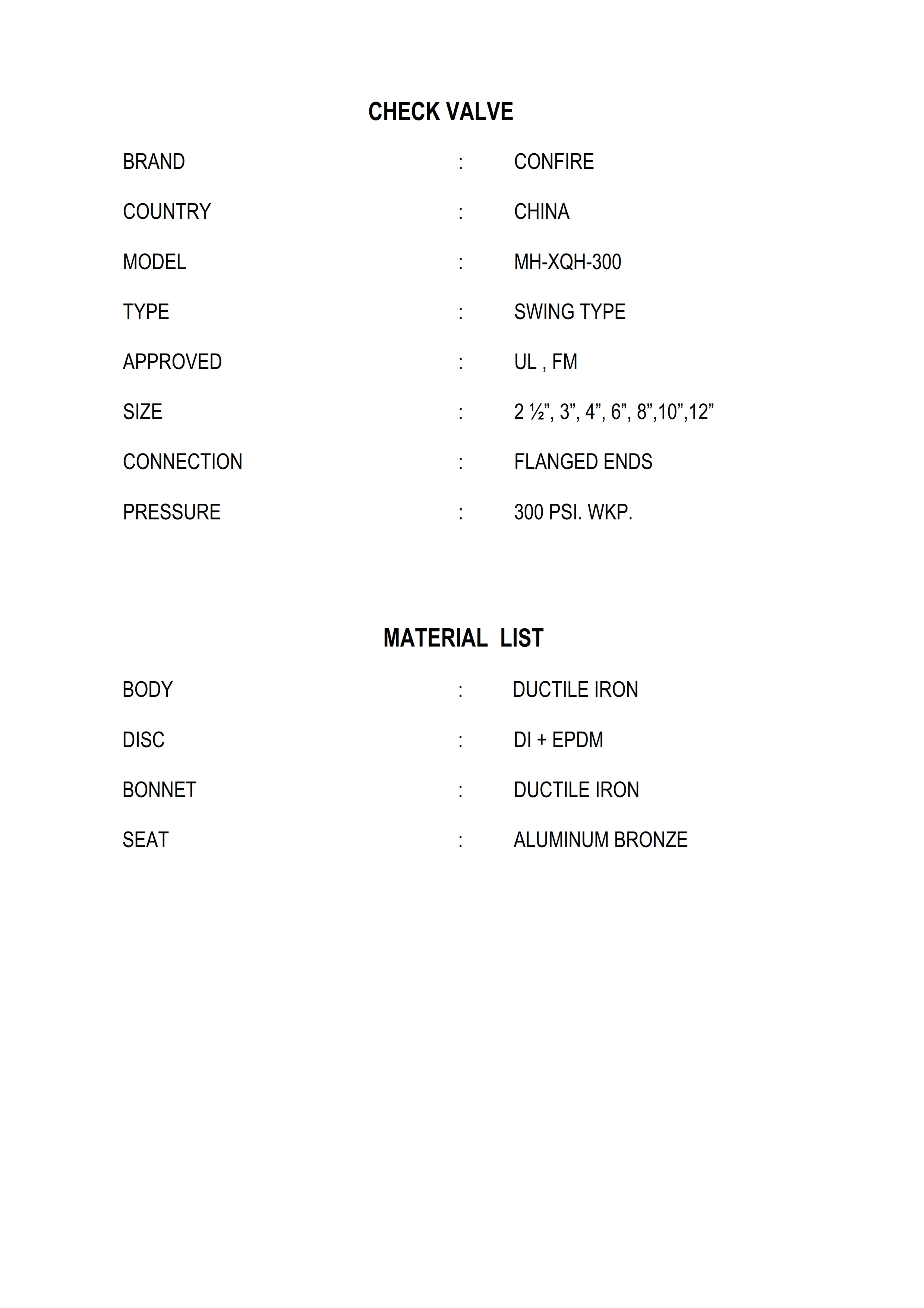

Material Specification
| name | material |
|---|---|
| Body | Ductile Iron |
| Cover | Ductile Iron |
| Disc | Ductile Iron + EPDM |
| Rocker Arm | Ductile Iron |
| Cotter Pin | Stainless Steel AISI 304 |
| Seat | Bronze |
