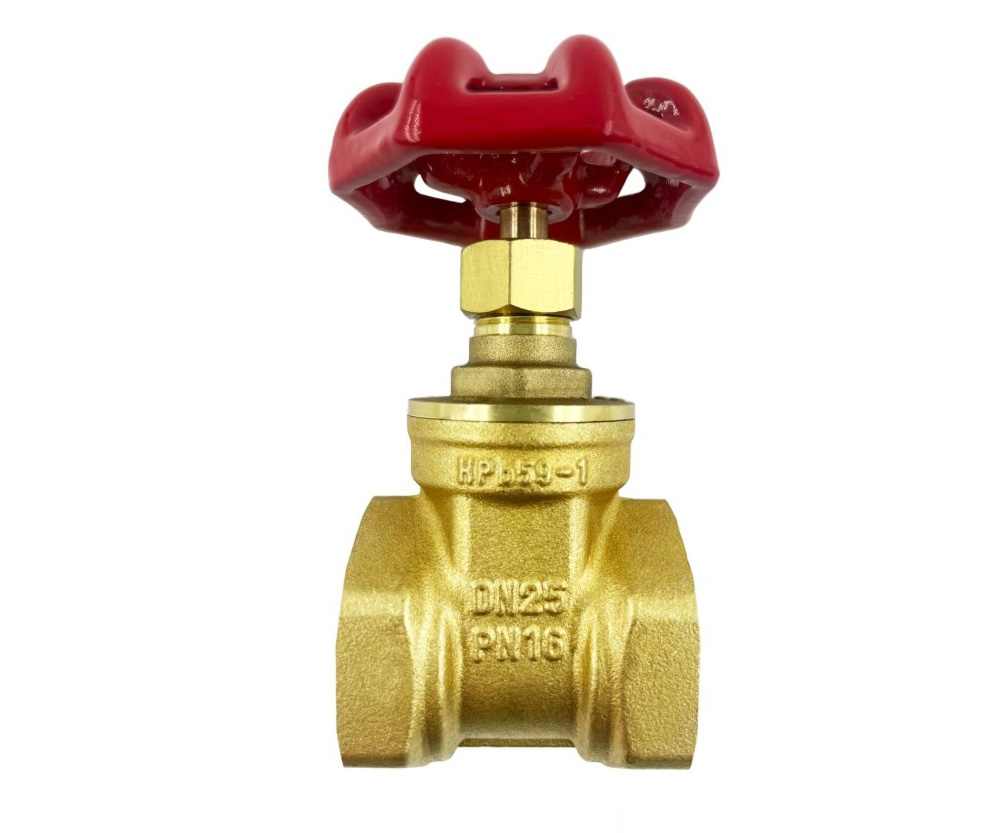

Bestop Brass Non-Rising Stem Gate Valve(NRS GV)
ZQ-2075
BESTOP
Bestop Brass Gate Valve, Class PN16 Model : ZQ-2075
Specification Standards :
-Pipe thread end is according : NPT
Features :
-Screwed end connection
-Forged brass
-Non rising stem, inside wedge disc
-Hand wheel operation
Application :
-For general and industrial service
-Applicable medium : water, light oil, &non-corrosive and non-combustible gas
Specification Standards :
-Pipe thread end is according : NPT
Features :
-Screwed end connection
-Forged brass
-Non rising stem, inside wedge disc
-Hand wheel operation
Application :
-For general and industrial service
-Applicable medium : water, light oil, &non-corrosive and non-combustible gas
SPECIAL FEATURES
| No. | Parts | Materials |
| 1 | Body | Brass |
| 2 | Bonnet | Brass |
| 3 | Disc | Brass |
| 4 | Lock nut | Brass |
| 5 | Stem | Brass |
| 6 | Stem packing | Brass |
| 7 | Gland | PTFE |
| 8 | Packing nut | Brass |
| 9 | Handwheel | Iron |
| 10 | Name plate | Aluminum |
| 11 | Wheel nut | Iron |
| Test Requirements | |
| Working Pressure | 232 PSI (16 Bar) |
