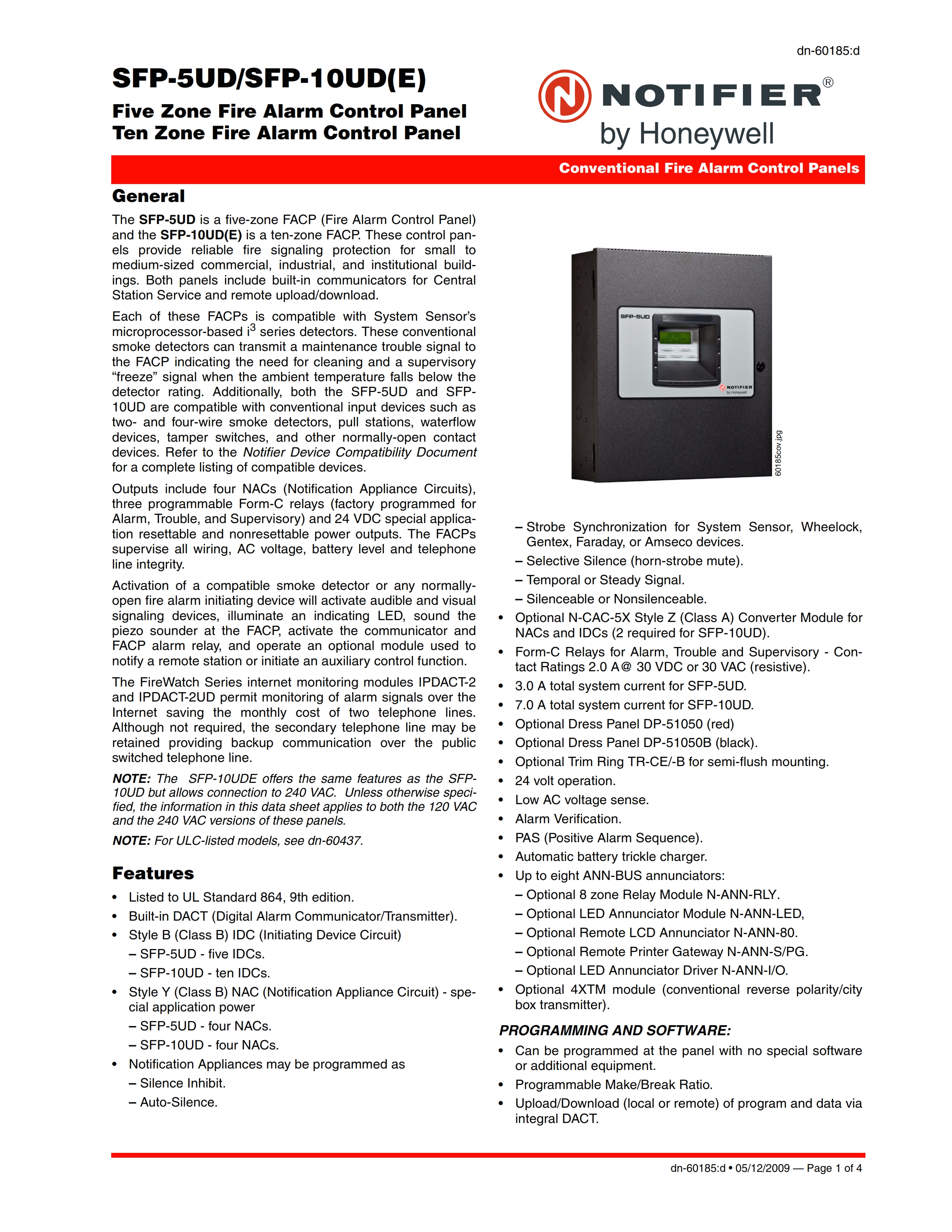

CONVENTIONAL FIRE ALARM CONTROL PANEL (ตู้ควบคุมระบบแจ้งเหตุเพลิงไหม้)
SFP-5UD, SFP-10UD
Notifier
The SFP-5UD is a UL listed, 5-zone fire alarm control panel with a built-in digital alarm communicator transmitter (DACT) and remote site upload/download capability.
Features & Benefits:
- Five Class B Initiating Device Circuits (IDCs), Class A optional with N-CAC-5X converter module
- Four Class B NACs rated at 2.5 amps, Class A optional with N-CAC-5X converter module
- 3.0 amps total system power
- Up to eight ANN-BUS devices (such as LCD annunciators)
- Serial or parallel printer interface
- 80-character LCD display
- Optional IP Communicator
The SFP-10UD are a UL listed, 10-zone fire alarm control panel with a built-in digital alarm communicator transmitter (DACT) and remote site upload/download capability.
Features & Benefits:
- Ten Class B Initiating Device Circuits (IDCs), Class A optional with N-CAC-5X converter module (2 required)
- Four Class B NACs rated at 3.0 amps, Class A optional with N-CAC-5X converter module (2 required)
- 7.0 amps total system power
- Up to eight ANN-BUS devices (such as LCD annunciators)
- Serial or parallel printer interface
- 80-character LCD display
ตู้ควบคุมระบบแจ้งเหตุเพลิงไหม้ SFP-10UD FCP ขนาด 10 โซน พร้อมแบตเตอรี่ 24VDC เหมาะสำหรับอาคารขนาดเล็ก ที่ต้องการแบ่งเขตการแจ้งเหตุเพลิงไหม้ไม่เกิน 10 โซน
SPECIAL FEATURES
Specifications
The SFP-5UD

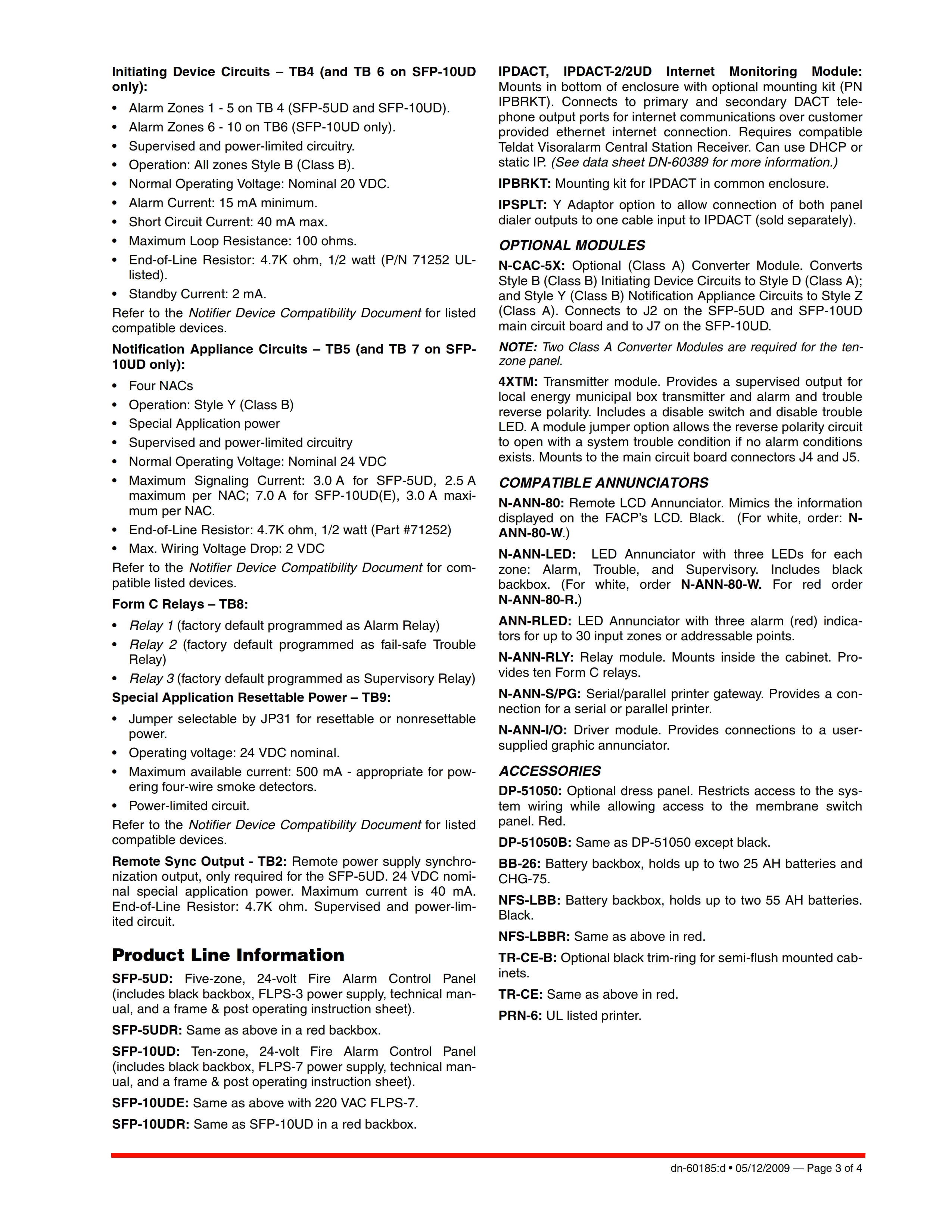

- Initiating Device: Circuits 5 Class B; Class A with optional N-CAC-5X converter module
- Notification Appliance Circuits (NACs): 2 Class B; Class A with optional N-CAC-5X converter module each rated for 2.5 amps
- Voice Evacuation Available: Yes, requires direct connect to FireVoice 25/50
- Power: 3.0 amps total system power
- Annunciators: Yes, up to 8 LCD type
- Printer Interface: Yes, serial or parallel
- DACT (Digital Alarm Communicator/Transmitter): Yes; Built-in
- Display: 80-character LCD
The SFP-10UD
- Initiating Device Circuits: 10 Class B; Class A with optional N-CAC-5X converter module (2 required)
- Notification Appliance Circuits (NACs): 2 Class B; Class A with optional N-CAC-5X converter module each rated for 2.5 amps
- Voice Evacuation Available: Yes, requires direct connect to FireVoice 25/50
- Power: 7.0 amps total system power
- Annunciators: Yes, up to 8 LCD type
- Printer Interface: Yes, serial or parallel
- DACT (Digital Alarm Communicator/Transmitter): Yes
- Built-in Display: 80-character LCD

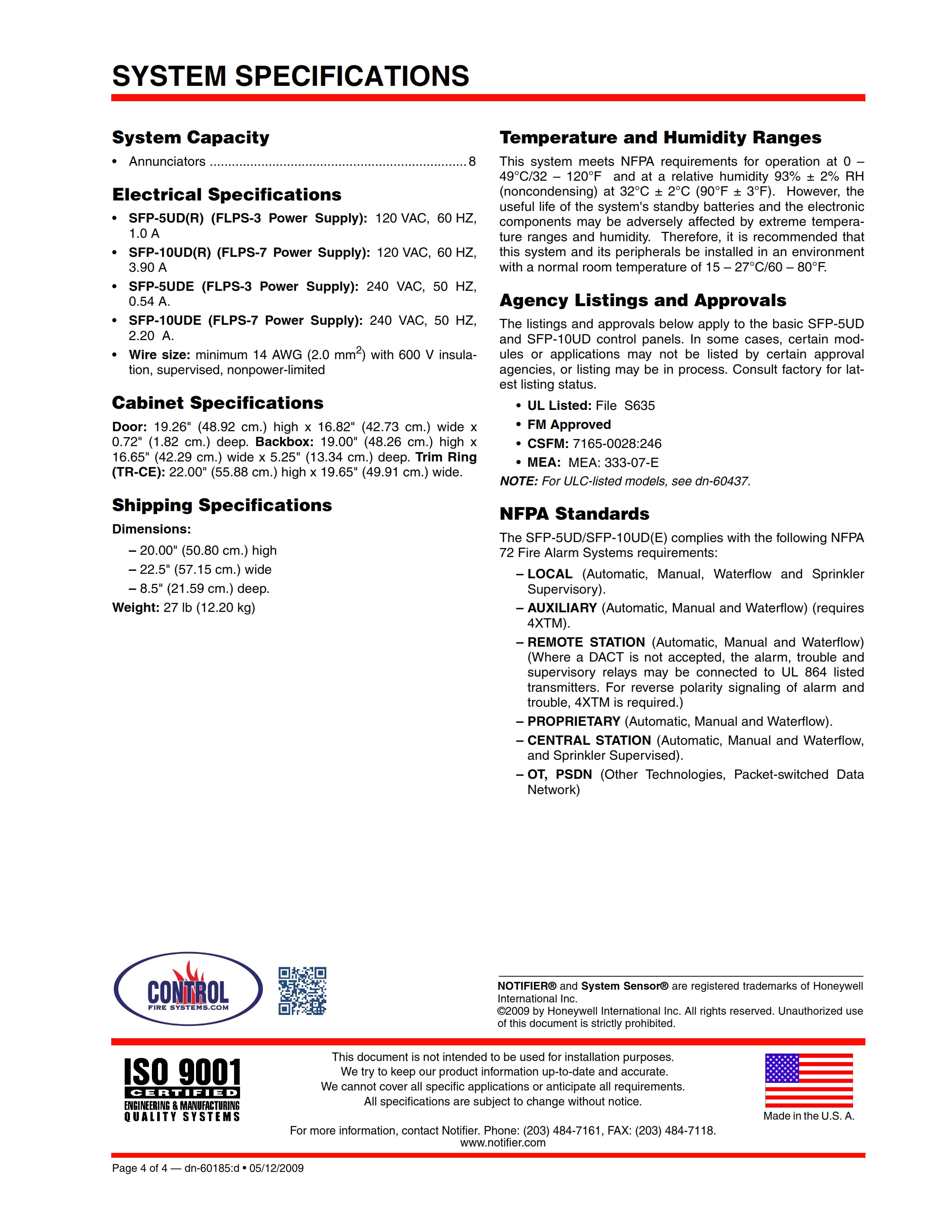

Listings:
- UL Listed: File S635
- FM Approved
- CSFM: 7165-0028:246
- MEA: MEA: 333-07-E
