VANE TYPE WATERFLOW ALARM SWITCH

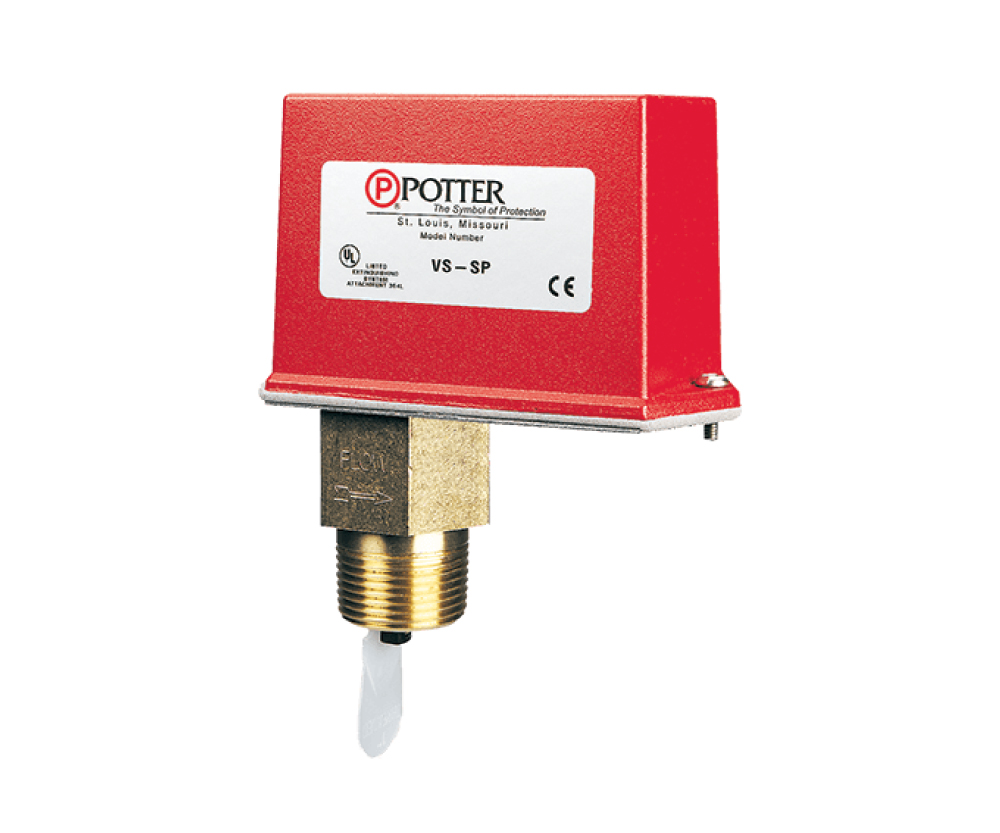

The Model VS-SP is a vane type waterflow switch for use on wet sprinkler systems. These devices may be used as sectional flow indicators on large sprinkler systems and on smaller sprinkler systems such as mobile homes and residential dwellings.

The VS-SP does not have a retard to prevent false alarms due to water surges. Therefore it should NOT be used on systems with variable water pressure supplies except in the case of elevator recall.

UL Listed
Usage : plastic, copper and schedule 40 iron pipe
For pipe sizes - 1" (25mm), 1-1/4" (32mm), 1-1/2" (38mm), and 2" (50mm)

Contacts: One set of SPDT (Form C), standard
Second set optional, see below:
15 Amps at 125/250VAC
0.5 Amps at 125VDC
0.25 Amps at 250VDC
2.5 Amps at 30 VDC resistive

• Service Pressure: Up to 250 PSI (17,2 BAR)
• Minimum Flow Rate for Alarm: 10 GPM (38 LPM)
• Maximum Surge: 18 FPS (5,5 m/s)
• Enclosure: Die-cast, red enamel fi nish
• Cover held in place with tamper resistant screws
