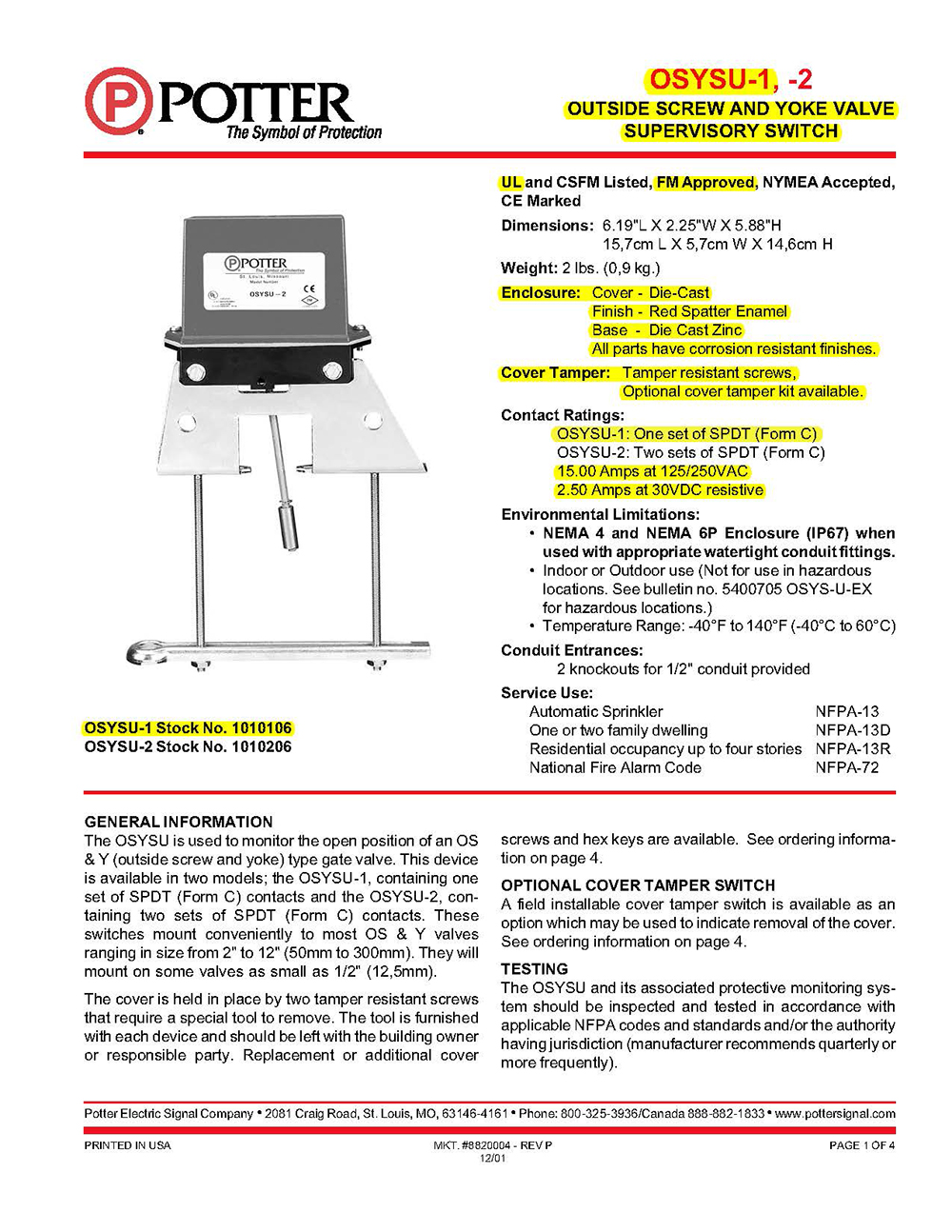

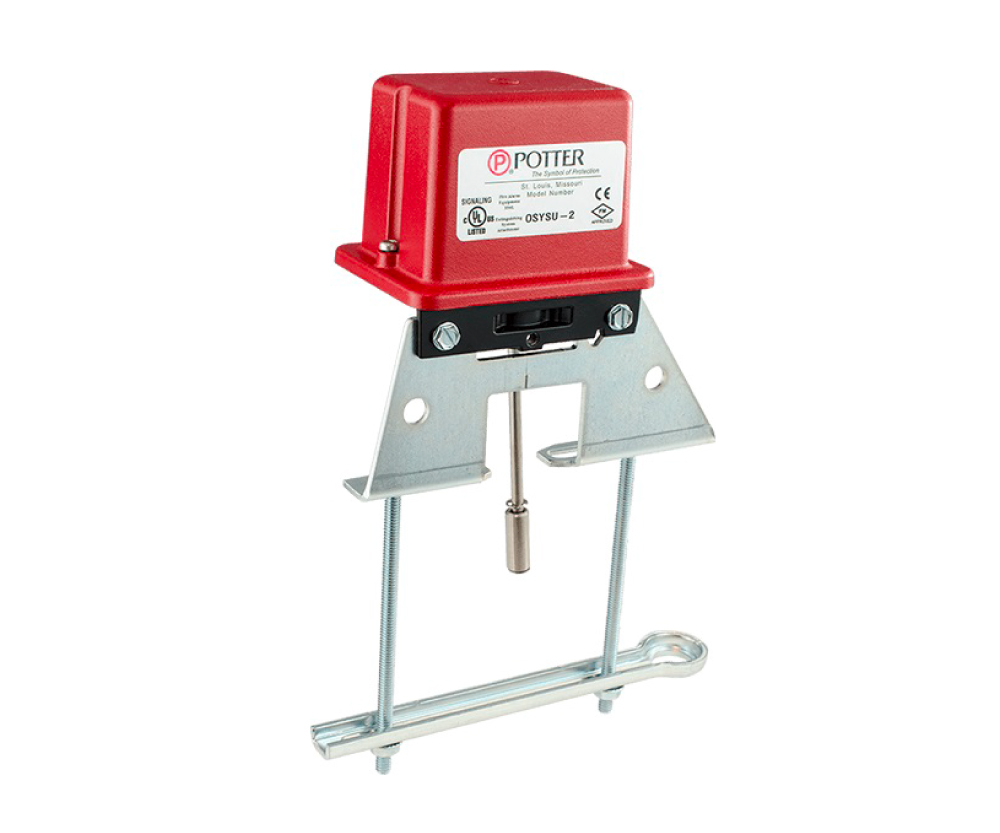

SUPERVISORY SWITCH
OSYSU-1
Potter Electric
OSYSU-1
UL and CSFM Listed, FM Approved, NYMEA Accepted, CE Marked
Dimensions: 6.19"L X 2.25"W X 5.88"H
15,7cm L X 5,7cm W X 14,6cm H
Weight: 2 lbs. (0,9 kg.)
Enclosure: Cover - Die-Cast
Finish - Red Spatter Enamel
Base - Die Cast Zinc
All parts have corrosion resistant finishes.
Cover Tamper: Tamper resistant screws,
Optional cover tamper kit available.
UL and CSFM Listed, FM Approved, NYMEA Accepted, CE Marked
Dimensions: 6.19"L X 2.25"W X 5.88"H
15,7cm L X 5,7cm W X 14,6cm H
Weight: 2 lbs. (0,9 kg.)
Enclosure: Cover - Die-Cast
Finish - Red Spatter Enamel
Base - Die Cast Zinc
All parts have corrosion resistant finishes.
Cover Tamper: Tamper resistant screws,
Optional cover tamper kit available.
SPECIAL FEATURES
• NEMA 4 and NEMA 6P Enclosure (IP67) when used with appropriate watertight conduit fittings.
• Indoor or Outdoor use (Not for use in hazardous locations. See bulletin no. 5400705 OSYS-U-EX for hazardous locations.)
• Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Indoor or Outdoor use (Not for use in hazardous locations. See bulletin no. 5400705 OSYS-U-EX for hazardous locations.)
• Temperature Range: -40°F to 140°F (-40°C to 60°C)
