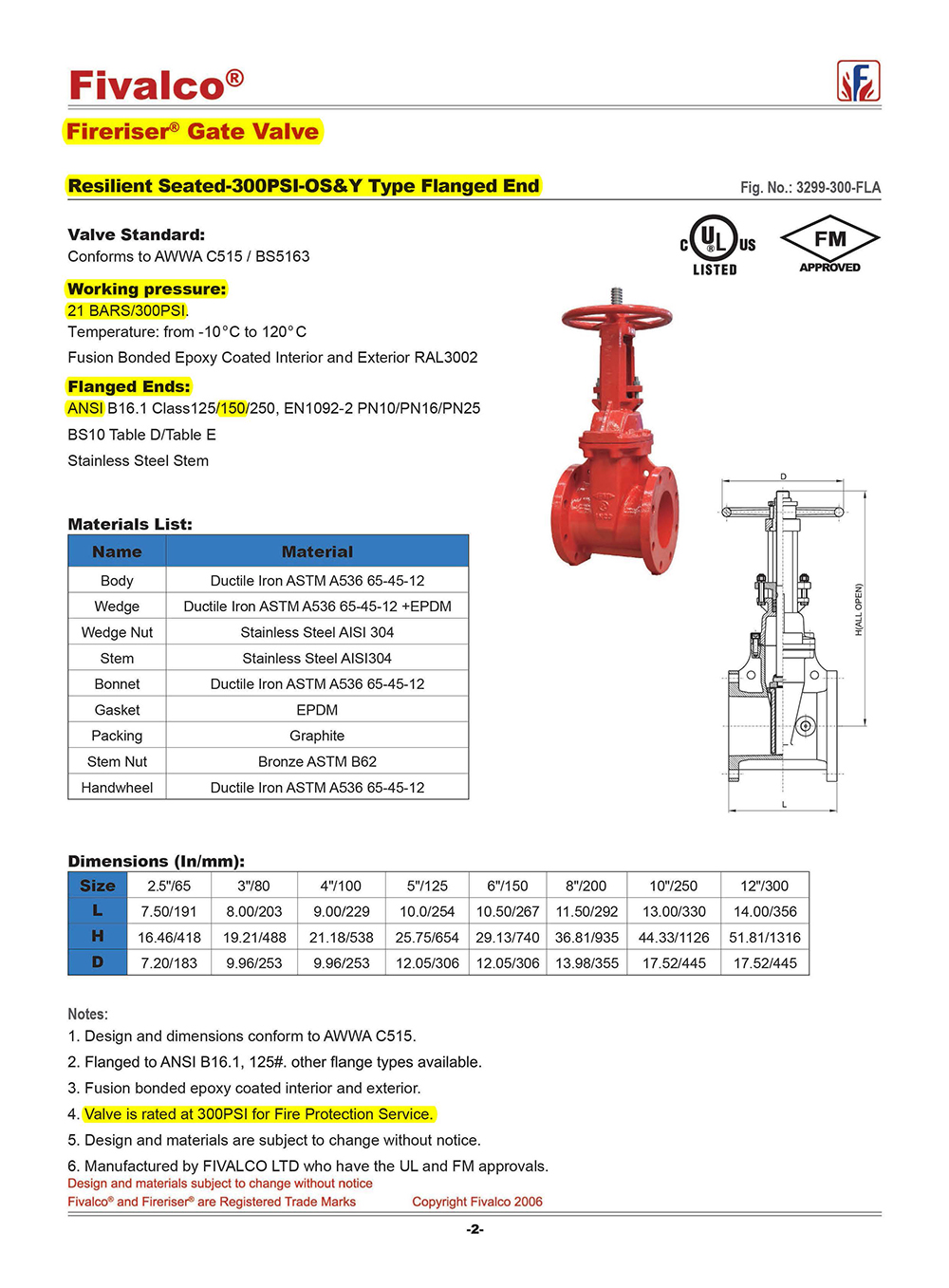

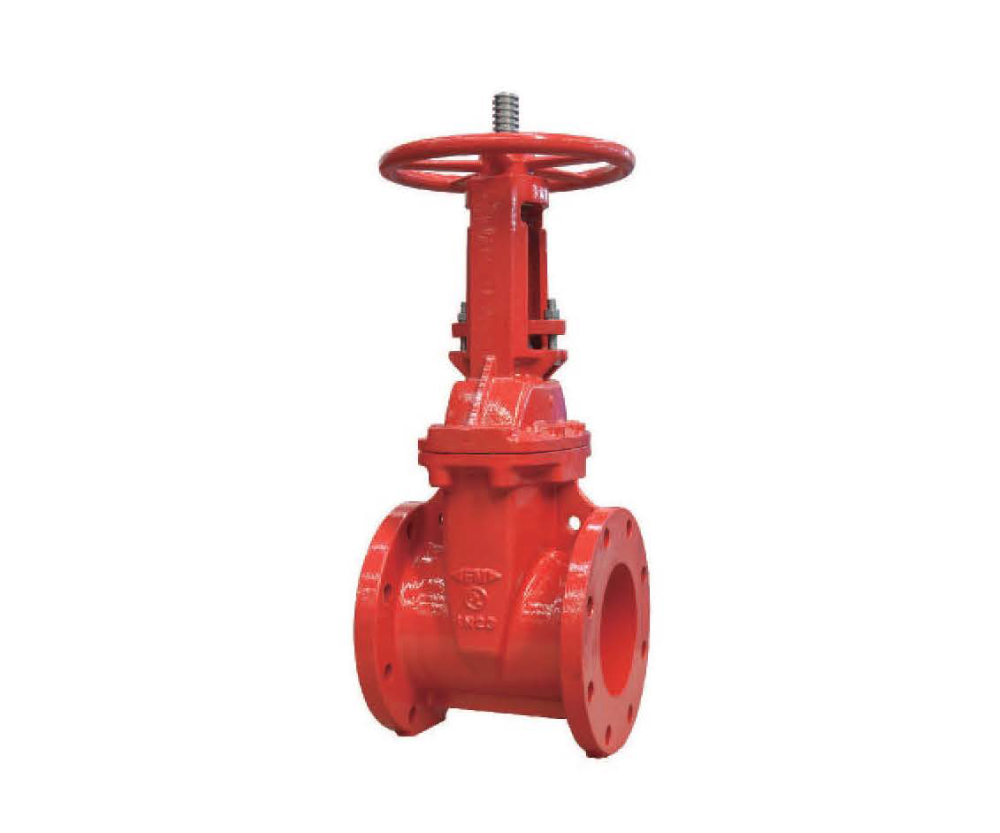

FIVALCO OS&Y GATE VALVE FLANGED END

Resilient Seated-300PSl-OS& Y Type Flanged End

Valve Standard:
Conforms to AWWA C515 / BS5163

Working pressure:
21 BARS/300PSI.
Temperature: from -10°C to 120°C
Fusion Bonded Epoxy Coated Interior and Exterior RAL3002

Flanged Ends:
ANSI B16.1 Class125/150/250, EN1092-2 PN10/PN16/PN25
BS1 0 Table D/Table E
Stainless Steel Stem

ได้รับมาตรฐาน
UL LISTED
FM APPROVED

• Body Ductile Iron ASTM A536 65-45-12
• Wedge Ductile Iron ASTM A536 65-45-12 +EPDM
• Wedge Nut Stainless Steel AISI 304
• Stem Stainless Steel AISI304
• Bonnet Ductile Iron ASTM A536 65-45-12
• Gasket EPDM
• Packing Graphite
• Stem Nut Bronze ASTM B62
• Handwheel Ductile Iron ASTM A536 65-45-12
