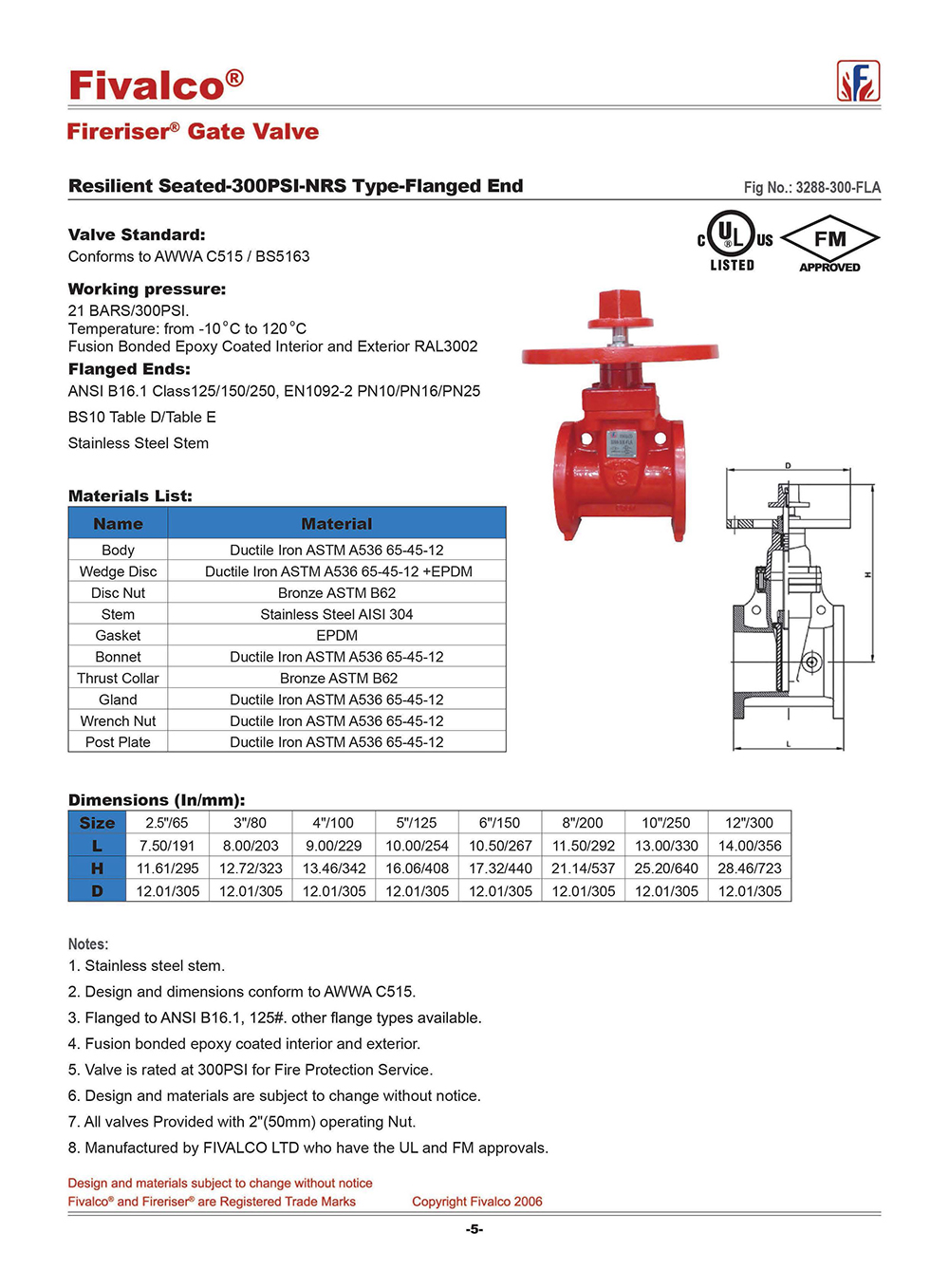

FIVALCO NRS GATE VALVE FLANGED END

Resilient Seated-300PSI-NRS Type-Flanged End

Valve Standard:
Conforms to AWWA C515 I BS5163

Working pressure:
21 BARS/300PSI.
Temperature : from -10 °C to 120 °C
Fusion Bonded Epoxy Coated Interior and Exterior RAL3002

Flanged Ends:
ANSI 816.1 Class125/150/250, EN1092-2 PN10/PN16/PN25
BS10 TableD/Table E
Stainless Steel Stem

ได้รับมาตรฐาน
UL LISTED
FM APPROVED

• Body : Ductile Iron ASTM A536 65-45-12
• Wedge Disc : Ductile Iron ASTM A536 65-45-12 + EPDM
• Disc Nut : Broze ASTM B62
• Stem : Stainless Steel AISI 304
• Gasket : EPDM
• Bonnet : Ductile Iron ASTM A536 65-45-12
• Thrust Collar : Broze ASTM B62
• Gland : Ductile Iron ASTM A536 65-45-12
• Wrench Nut : Ductile Iron ASTM A536 65-45-12
• Post Plate : Ductile Iron ASTM A536 65-45-12
