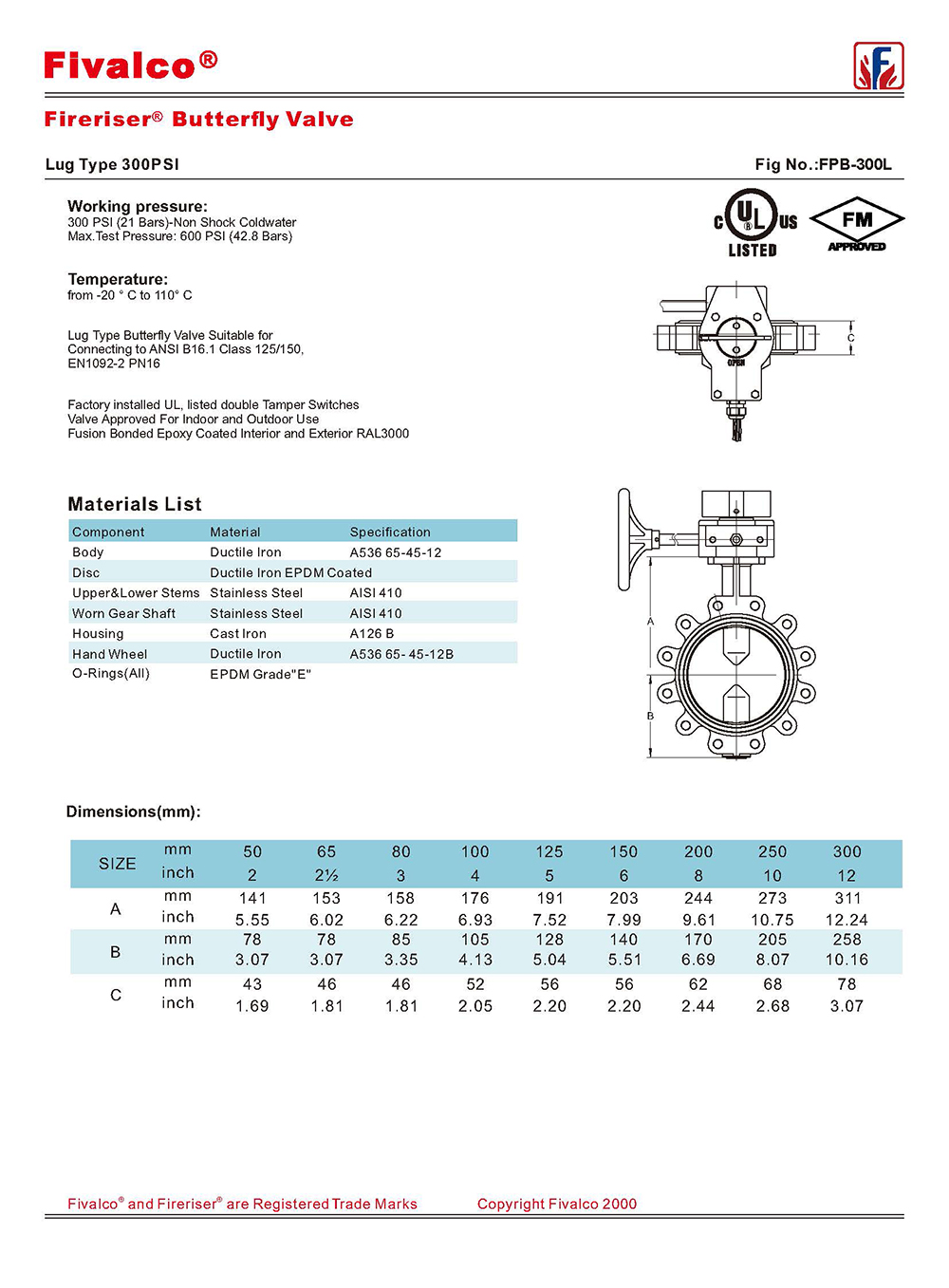

FIVALCO BUTTERFLY VALVE W/SUP. LUG TYPE
FPB-300L
Fivalgo
บัตเตอร์ฟลายวาล์ว พร้อมตัวส่งสัญญาณ ชนิดลักไทพ์
มาตรฐาน UL / FM
Working pressure:
300 PSI (21 Bars)-Non Shock Coldwater
Max.Test Pressure: 600 PSI (42.8 Bars)
Temperature: from -20 ° C to 110° C
Lug Type Butterfly Valve Suitable for Connecting to ANSI B16.1 Class 125
Factory installed UL, listed double Tamper Switches
Valve Approved For Indoor and Outdoor Use
Fusion Bonded Epoxy Coated Interior and Exterior RAL3000
มาตรฐาน UL / FM
Working pressure:
300 PSI (21 Bars)-Non Shock Coldwater
Max.Test Pressure: 600 PSI (42.8 Bars)
Temperature: from -20 ° C to 110° C
Lug Type Butterfly Valve Suitable for Connecting to ANSI B16.1 Class 125
Factory installed UL, listed double Tamper Switches
Valve Approved For Indoor and Outdoor Use
Fusion Bonded Epoxy Coated Interior and Exterior RAL3000
SPECIAL FEATURES
• Body : Ductile Iron
• Disc : Ductile Iron EPDM Coated
• Upper & lower Stems : Stainless Steel
• Worn Gear Shaft : Stainless Steel
• Housing : Cast Iron
• Hand Wheel : Ductile Iron
• O-Rings (All) : EPDM Grade "E"
• Disc : Ductile Iron EPDM Coated
• Upper & lower Stems : Stainless Steel
• Worn Gear Shaft : Stainless Steel
• Housing : Cast Iron
• Hand Wheel : Ductile Iron
• O-Rings (All) : EPDM Grade "E"
